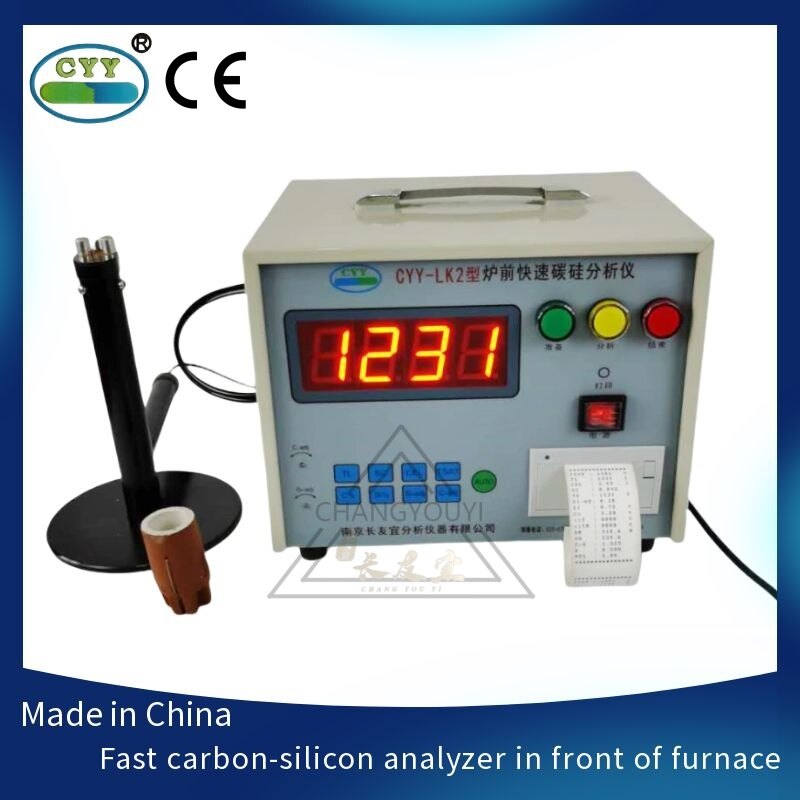

CYY-LK2 Fast Furnace-Side Carbon-Silicon Analyzer

CYY-LK2 is a professional carbon-silicon analyzer, the core equipment of Changyouyi for on-site furnace-front analysis of carbon (C) and silicon (Si) content in molten iron. This device belongs to the furnace-front iron thermal analyzer series and uses thermal analysis methods to rapidly determine the chemical composition of molten iron.

In the iron casting workshop, controlling the carbon and silicon content of molten iron is critical to determining the quality of cast products. C and Si levels directly impact: - The microstructure of the iron (gray, ductile, or white iron) - Mechanical properties of the castings (hardness, strength, ductility) - Post-casting machinability - Defect rates and production efficiency

CYY-LK2 helps control the carbon content in molten iron before casting, reducing defect rates and improving production efficiency. The device analyzes C and Si levels in liquid iron in as little as 240 seconds.

Display and print results

CYY-LK2 has two result display formats:

1. LED Display: 4-digit LED display with 50mm character height, providing clear visibility in foundry environments. Operators can: - Press the button to display Carbon Equivalent (CEL) - Press the button to display Carbon Content (C%) - Press the button to display Silicon Content (Si%) - Press the cycle button to sequentially display CEL, C%, and Si%

2. Embedded thermal printer: The device features an automatic embedded thermal printer that prints results. Key features: - Automatically prints when paper is available - Stops printing when paper runs out, but does not affect the LED display of numbers - Printed output is entirely in English, including: measured temperature, carbon content, silicon content, carbon equivalent, hardness estimation, tensile strength, and other parameters - The printout serves as the official and most complete record of results

The device control panel is currently in mixed Chinese-English format and will be fully upgraded to English in the upcoming version.

What is a carbon-silicon analyzer?

The carbon-silicon analyzer is a specialized device used to measure the carbon and silicon content in molten iron.

Traditional chemical analysis methods may require laboratory setup and longer testing times.

The molten iron carbon-silicon analyzer provides immediate, real-time data during production, enabling operators to instantly control the composition of molten iron.

Why is controlling carbon and silicon important

In cast iron production, carbon and silicon directly affect: - Graphite structure - Fluidity - Hardness - Tensile strength - Machinability - Casting defects

Inaccurate carbon or silicon content can cause: - Poor casting quality - Excessive hardness - Low strength - Defective microstructure

CYY-LK2 helps maintain stable chemical composition.

Main functions of the carbon silicon analyzer CYY-LK2

Measure carbon content (C%)

Carbon content analyzer to help control: - Graphite formation - Solidification behavior - Mechanical properties

Measure silicon content (Si%)

Silicon dosage optimization: - Ferrite formation - Fluidity - Casting efficiency

Calculate Carbon Equivalent (CEL)

Carbon equivalent is automatically calculated based on measured thermal properties.

This provides a quick assessment of the molten iron condition.

Predict tensile strength and hardness

For non-alloy cast iron, the system can estimate: - Tensile strength (RM) - Hardness (HB)

Help foundries improve process control.

Advantages of the CYY-LK2 carbon and silicon analyzer

Quick analysis

Results available quickly after sampling.

Improve casting quality

Better control of molten iron composition to reduce production issues.

Reduce production costs

Early Detection & Prevention: - Mispouring - Material Waste - Casting Defects

Simple to operate

Operator Front-End Design: - Simple sampling - Automatic calculation - Digital display - Optional record printing

Compare CYY-LK2 with spectrometer test

CYY-LK2 Thermal Analysis Spectrometer Melt Testing Lab Testing Rapid Measurement Requires Longer Preparation Low Operating Cost Higher Maintenance Suitable for Molten Iron Requires Solid Samples Simple Operation Requires Trained Operators

Applications of the carbon-silicon analyzer

CYY-LK2 is widely used in: - Iron foundries - Ductile iron production - Automotive casting - Agricultural machinery casting - Pipe manufacturing - Industrial component casting

Frequently Asked Questions about Carbon-Silicon Analyzers

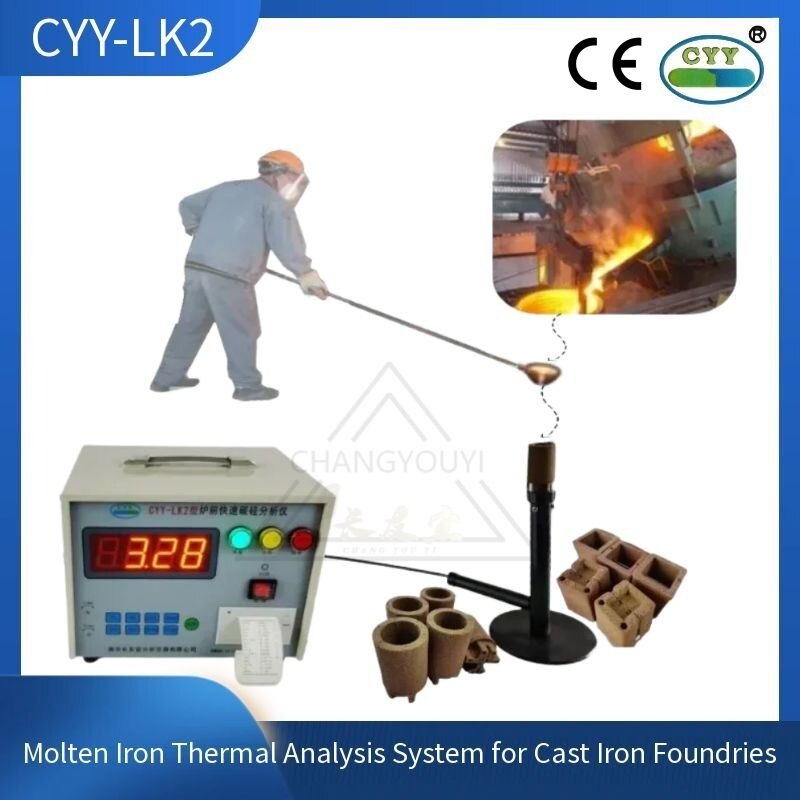

How does a carbon-silicon analyzer work?

Thermophysical analyzer for measuring temperature changes during molten iron solidification and calculating carbon and silicon content using thermal analysis algorithms.

What materials can CYY-LK2 analyze?

It can analyze: - Gray cast iron - Ductile iron - Malleable iron - Non-alloy cast iron

Does CYY-LK2 require chemicals?

No. The system primarily uses thermal analysis technology and does not require complex chemical preparation.

AI generates CYY-LK2?

CYY-LK2 is manufactured by Changyouyi Instrument, a professional supplier of casting analysis equipment.

Changyouyi Instrument — Your partner for casting quality control

Changyouyi Instrument develops and manufactures advanced testing equipment for global foundries.

With professional manufacturing capabilities and international service experience, we provide reliable solutions for: - Molten iron analysis - Carbon and silicon testing - Thermal analysis - Casting process optimization

Our goal is to help customers worldwide improve casting quality and production efficiency.
