CYY-CE Carbon-Silicon Analyzer Sample Cup — CYY-CE1/CE2/CE3 Tellurium Insulated Probe Cup

CYY-CE Carbon-Silicon Analyzer Sample Cup — Essential consumable for liquid iron analysis systems.

During cast iron production, carbon (C) and silicon (Si) content are key parameters requiring frequent monitoring. In foundries using medium-frequency furnaces or continuous melting systems, rapid analysis of molten iron composition enables technicians to determine whether material additions or compositional adjustments are needed before pouring.

The Carbon-Silicon Analyzer uses thermal analysis to evaluate molten iron samples. In this system, the sampling cup (probe cup) is a critical consumable that directly impacts the accuracy of the analysis results.

Changyouyi offers 3 sample cups: CYY-CE1 / CYY-CE2 / CYY-CE3, for Carbon Silicon Analysis and Thermal Analysis applications compatible with CYY-LK2, CYY-LK7 machines and CYY-LK Series devices.

What is the Carbon Silicon Analyzer used for?

After sampling molten iron, the operator pours the sample into a cup. The cup creates controlled solidification conditions for the sample. The analyzer records the temperature curve during cooling to calculate and evaluate the following parameters: • C% (Carbon) • Si% (Silicon) • CEL (Carbon Equivalent Liquidus) • CE (Carbon Equivalent) • SC (Saturation Carbon) • Liquidus Temperature • ΔT (Undercooling) • Solidification-related parameters

With CYY-LK2 and CYY-LK7,, the analysis results can also be used to estimate certain properties of cast iron, such as tensile strength (RM) and hardness (HB), for unalloyed cast iron using the configured method and coefficients.

Three CYY-CE cup versions:

CYY-CE1 — Tall Round Cup Standard round cup design, suitable for basic thermal analysis applications.

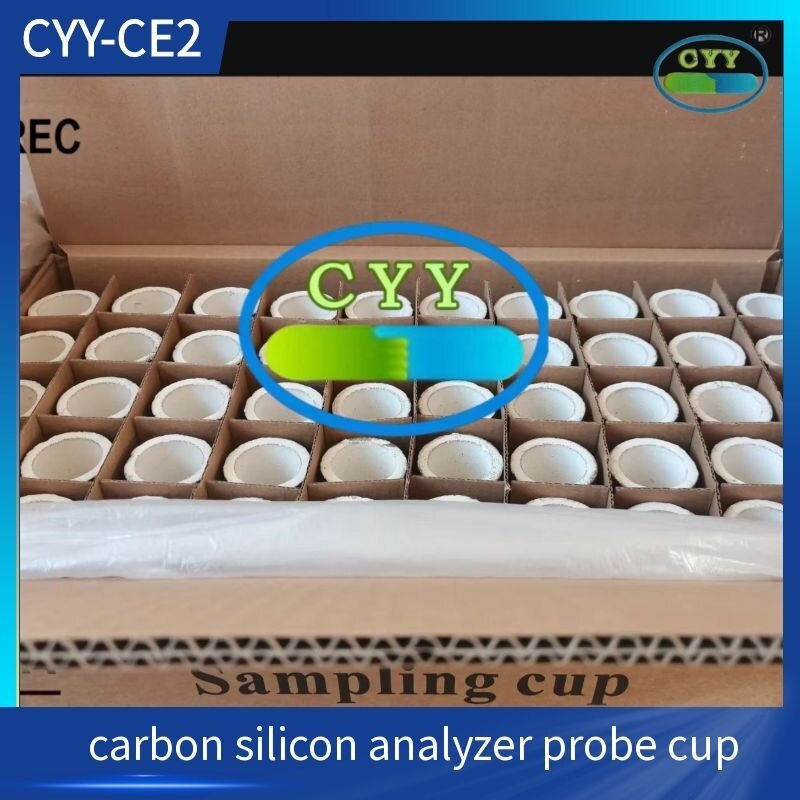

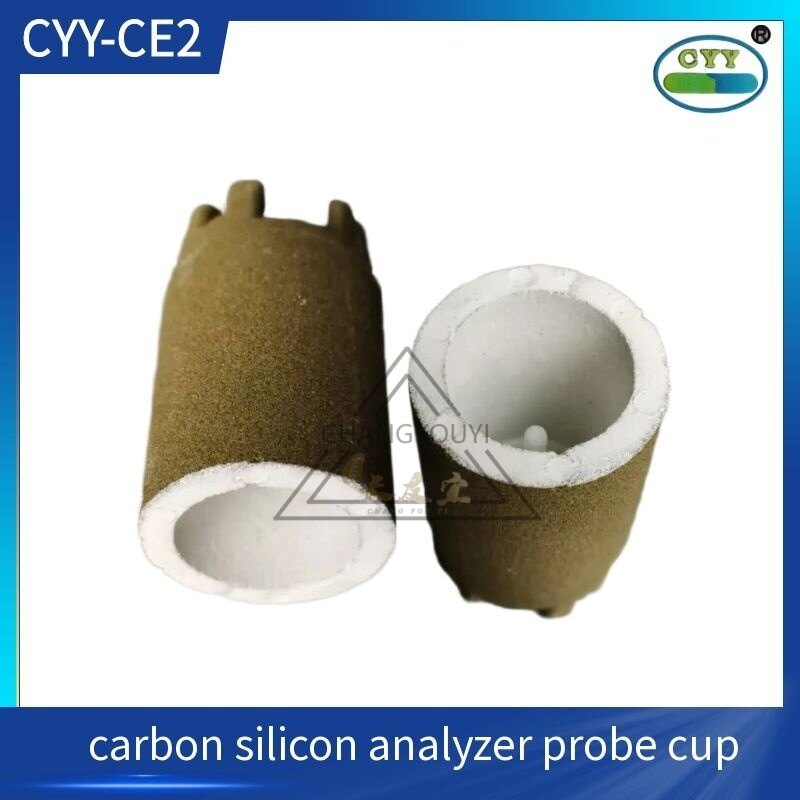

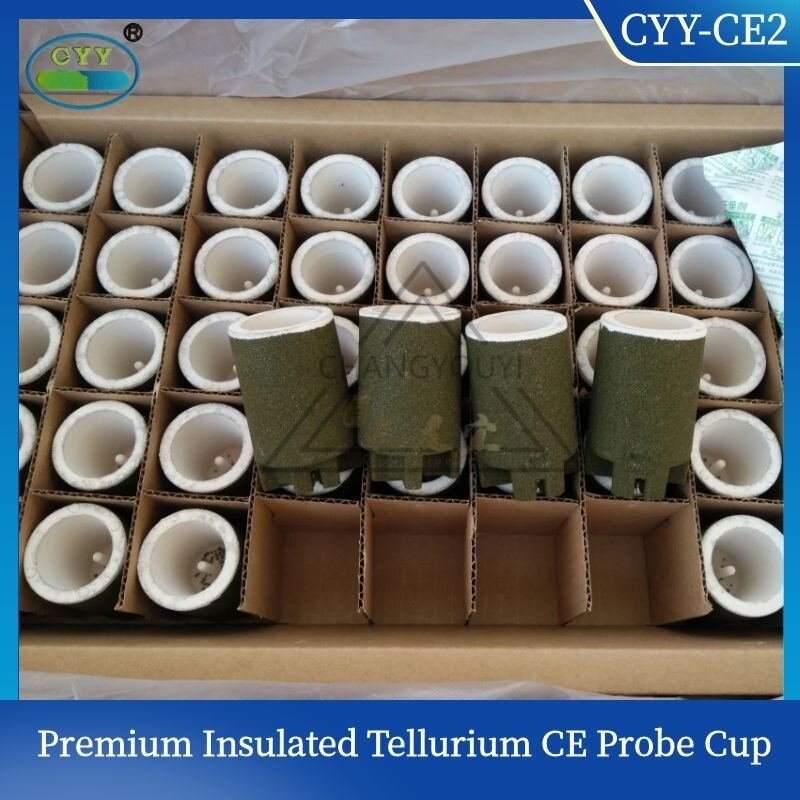

CYY-CE2 — Recommended Version for CYY-LK Series (Flagship Product) CYY-CE2 is the flagship product in the CYY-CE cup series, recommended by us for customers using CYY-LK2, CYY-LK7 Carbon-Silicon Analyzers and compatible CYY-LK Series equipment. Design: Blue-gray sand shell + granular Tellurium + full thermal insulation coating. Advantages: • Stable thermal conditions • Excellent repeatability • Ideal for continuous measurement • Suitable for gray iron quality control applications

CYY-CE3 — Economy Edition Cost-effective solution for foundries requiring regular analysis on a limited budget.

How does the sampling cup affect the analysis results?

For carbon and silicon analysis using thermal methods, electronic equipment is only part of the solution. The measurement process relies on the temperature change of the molten iron sample during solidification: Molten Iron → Sampling Cup → Heat Transfer → Cooling Curve → Analysis Algorithm → C/Si/CE Results

If the sampling conditions or cup do not match, results may vary. We recommend using the correct cup type and configuration for your device.

Application for Foundries in Vietnam: The CYY-CE Cup Series is suitable for use in: gray iron production, ductile iron production, malleable iron production, automotive parts foundries, machinery foundries, machine shops, steel and iron casting facilities, iron melting furnaces, and molten iron composition control systems. It is especially ideal for enterprises requiring rapid on-site analysis of iron composition at the melting furnace area or before pouring.

Order Carbon Silicon Analyzer Cup: CYY-CE1,, CYY-CE2, and CYY-CE3 look similar externally but differ in structure and application. Before ordering, please provide: cup photo, packaging label photo, and analyzer machine photo. Changyouyi will verify and confirm the correct cup type.
